Raypak pool heaters are recognized for their reliability and efficiency, making them an excellent choice for heating pools of all sizes. Raypak pool heaters with advanced technology and a reputation for durability ensure that your swimming experience is comfortable, no matter the outdoor temperature. Understanding the various Raypak pool heater parts, which are necessary for proper maintenance and problem solving, by keeping your heater performing optimally and maintaining its lifetime. This guide will focus on the most common Raypak pool heater parts and what they do to keep your pool heater working properly.
Top Selling Products

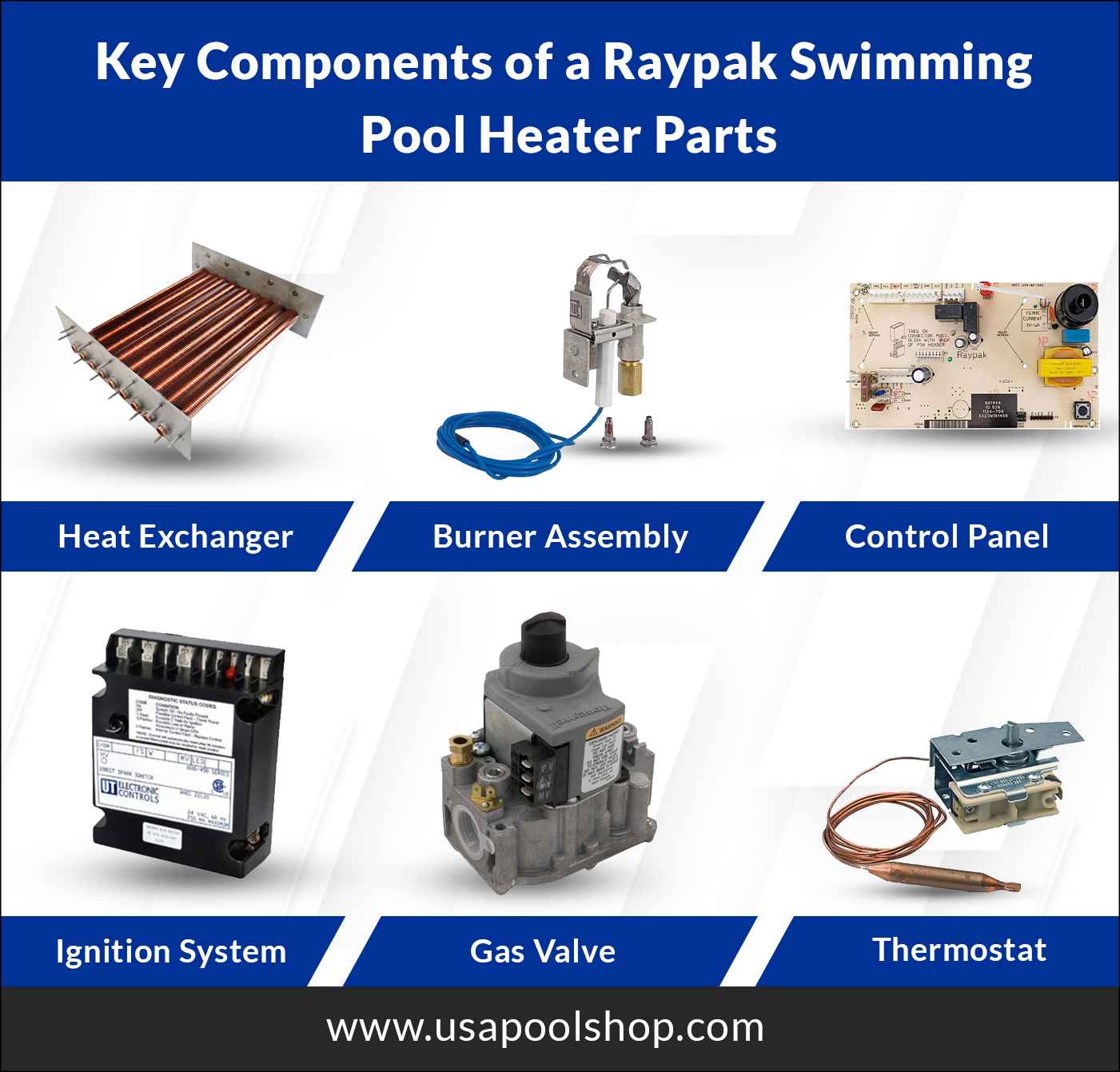

Key Components of a Raypak Pool Heater
1. Raypak pool heater heat exchanger
The Raypak Pool Heater Pool Heater heat exchanger is a critical component that transfers heat from the heating source (either gas or electric) to the pool water. The way it works is by just letting the pool water flow over heated surfaces which heat the water, before it gets returned to the pool.
Common issues and maintenance tips: Scale build-up or corrosion in Raypak Pool Heater heat exchangers may reduce the efficiency and overall performance of the system. These issues can be prevented, however, through regular maintenance, which includes periodic cleaning and inspection.
2. Raypak pool heater igniter
A spark igniter is needed to make contact with the switch to make a spark to ignite the gas inside the burner assembly and that spark igniter is known as the Raypak Pool Heater igniter. The heater needs to start up the pool needs a consistent source of heat and a functioning igniter is essential.
Troubleshooting igniter issues: Raypak Pool Heater igniter problems include no spark, weak spark, or no spark at all. To troubleshoot, have the igniter's quality connections checked for any loose wires, and ensure it's clean and not dusty.
3. Raypak pool heater pilot light
The Raypak Pool Heater pilot light is just a small flame to ignite the main burner. The heater must operate continuously. The heater will not operate if the pilot light goes out.
Function and how to relight It if extinguished: the first step is turning off the gas to the heater, and waiting a few minutes. Next, go to the pilot light assembly and turn the knob, on min,e it is on by "Pilot" and then press down while lighting the pilot flame with a long lighter. After the flame is established, keep the knob held for a minute, then release it and turn the knob to "On."
4. Raypak pool heater on/off switch
The basic operational feature of the Raypak Pool Heater is the Raypak Pool Heater on/off switch which allows the user to turn power to the heater on and off. And it not only makes sure the heater works when needed, saving energy and convenience, but it's also essential.
When to replace it: If the on/off switch won’t turn the heater on or off, or is behaving unusually, you should replace it. The Raypak Pool Heater’s safe operation relies on ensuring the on/off switch is in good condition
5. Raypak pool heater cover
A Raypak pool heater cover is an important element that protects the unit from external damage brought on by harsh weather, debris, UV rays, and moisture. A good cover will extend the life of your heater, lessen the need for maintenance, and increase efficiency by keeping the heater clean and out of the elements.
6. Other parts for Raypak Pool Heater
Valves: Water flow control valves can wear out. With time, they need to be inspected and changed to ensure water flow is good or to ensure leaks aren't occurring.
Thermostats: Regulating the pool water temperature is the job of the thermostat. If the heater doesn't respond to set temperatures then the thermostat may need replacing.
Fans: For combustion and gas exhaust, the fan is important for gas models. If your fan isn’t working correctly, you risk inadequate heating or unsafe operation, so check and replace it as needed.
Popular Raypak Pool Heater Models and Their Parts
Raypak is a pool heater company, that offers a multitude of models that are trusted among the few reliable and energy efficient. The Raypak 156A and Raypak 206A are two of the most popular of these models.
Raypak 156A Pool Heater
The Raypak 156A Pool Heater features several essential components that work together to provide effective heating for your pool:
Transfers heat from a combustion process to the pool water.
Given the responsibility to mix the air with the gas, for combustion which produces heat.
Raypak 206A Pool Heater
The Raypak 206A Pool Heater is designed for larger pools and features robust components:
Like the 156A, but with a higher flow rate and larger volume of water.
It monitors the burner flame so that the operation is safe.
It eliminates the need for a pilot light and is a more efficient ignition.
Troubleshooting Common Raypak Pool Heater Issues
Knowing how to identify and troubleshoot common problems with your Raypak pool heater is important when dealing with your Raypak pool heaters. Raypak Pool Heater Fault Codes are provided below and Raypak Pool Heater Troubleshooting Tips are shared below.
Raypak Pool Heater fault codes:
Diagnosing Raypak Pool Heater Fault Codes requires an understanding. These codes appear on your heater's display and can indicate various problems, such as:
Error code 1: It indicates a temperature sensor problem.
Error code 2: A lack of water flow which causes this thinking either means a clogged filter or a broken pump.
Error code 3: This is concerned with ignition failure and could be related to either a faulty ignition system or to insufficient gas supply.
Raypak Pool Heater troubleshooting tips:
Here are some detailed Raypak Pool Heater Troubleshooting Tips to help you identify and resolve common issues:
Inspect water flow: If you see Error Code 2, look at the water flow to the heater. Make sure the pump, filter, or skimmer doesn’t have any obstructions, and clean or replace any blocked parts.
Examine gas supply: If you get Error Code 3, make sure that your gas supply is connected and on. Look at gas lines for leaks and check to see if there is a gas valve open.
Inspect temperature sensors: If you get a temperature sensor error, check your sensors are properly placed and connected. Replace if damaged.
Clean the heater: To ensure smooth operation without debris build-up, make it a habit to clean the heater and its surrounding areas regularly.
Reset the heater: Intermittent issues can sometimes be solved by just resetting the heater. Power down, wait a minute, and power up.
Ensure your pool stays warm year-round by keeping your heater parts in top condition with simple maintenance solutions
Raypak Pool Heater Installation
When it comes to upgrading or installing pool heating solutions, such as Raypak pool heaters and heat pumps, understanding key considerations and potential pitfalls can ensure a successful setup and optimized performance.
Key considerations for a proper setup
Consideration | Description |
Location | Choose a well-ventilated, accessible spot, clear of debris or branches. |
Clearance requirements | Follow local codes and manufacturer specs for proper clearance and ventilation. |
Water and electrical connections | Align water inlet/outlet and ensure electrical connections meet local codes. |
Gas supply | Ensure gas line size meets BTU requirements and is pressure-tested. |
Winterization | Properly winterize or drain the heater to prevent freeze damage. |
Common installation mistakes to avoid
Mistake | Description |
Inadequate ventilation | Failing to provide sufficient airflow can lead to overheating and inefficient operation. |
Incorrect sizing | Using a heater that is too small or too large for your pool can lead to inefficient heating and higher costs. |
Poor pipe installation | Improperly installed or sized piping can cause pressure drops and inefficient heating. |
Neglecting electrical safety | Ensure electrical connections are secure and properly grounded to avoid hazards. |
Forgetting to test | Always test after installation to check for leaks and proper function. |
Maintenance Tips for the Longevity of Raypak Pool Heater
Maintaining your Raypak Pool Heater is essential for optimizing its performance, ensuring longevity, and preventing costly repairs.
Regular cleaning and inspection of the raypak pool heater cover
The Raypak Pool Heater Cover plays a vital role in protecting the internal components of the heater from dust, debris, and harsh weather conditions. Regularly clean the cover to remove any accumulated dirt or debris.
Ensuring the raypak pool heater igniter and pilot light are functioning properly
The Raypak Pool Heater Igniter is a critical component for the ignition process. Regularly inspect the igniter to ensure it is clean and functioning correctly. If the pilot light goes out frequently or does not ignite, it may indicate a problem with the igniter or the gas supply.
How to clean or replace the heat exchanger for raypak pool heater
The Heat Exchanger for Raypak Pool Heater is key to efficiently transferring heat to the water. it can accumulate scale and debris, reducing its effectiveness. To clean the heat exchanger, you can use a descaling solution specifically designed for pool heaters.
Simplify pool maintenance with these must-have cleaning tools for crystal-clear water
Maintaining Raypak pool heater parts is crucial for ensuring the efficient and reliable performance of the pool heating system. Regular inspection and upkeep of Raypak pool heater parts can help prevent costly repairs and extend the lifespan of your equipment., the regular maintenance schedule for Raypak swimming pool heater parts. This includes checking essential components like filters, valves, and heating elements. By doing so, you can ensure your Raypak pool heaters are functioning at their best. Usapoolshop provides crucial replacement components such as valves, o-rings, pressure gauges, and plumbing fittings. acquire the necessary parts for your pool.
FAQs
What are the benefits of upgrading to a Raypak Pool Heat Pump?
Raypak Pool Heat Pumps offer energy efficiency by using electricity to move heat, making them more cost-effective than traditional gas heaters. They are environmentally friendly, provide consistent heating, lower operating costs over time, and operate quietly.
What should be considered when choosing a cover for Raypak pool heaters?
Ensure a proper fit, durable and weather-resistant material, adequate ventilation to prevent moisture buildup, and ease of use with features like straps or buckles.
